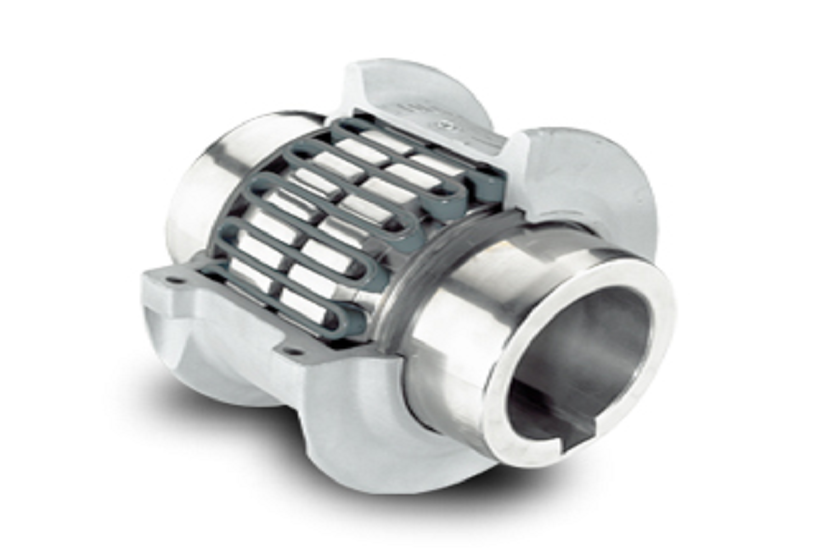

KTL Serpentine spring coupling
25 specifications
11 models, including high-speed, spacing, flywheel, brake wheel and moment limiting
Opening capacity up to 20 inches (508 mm)
Torque up to 8,250,000 inches-pounds (932,126 twist meters)
Speed up to 10,000 rpm

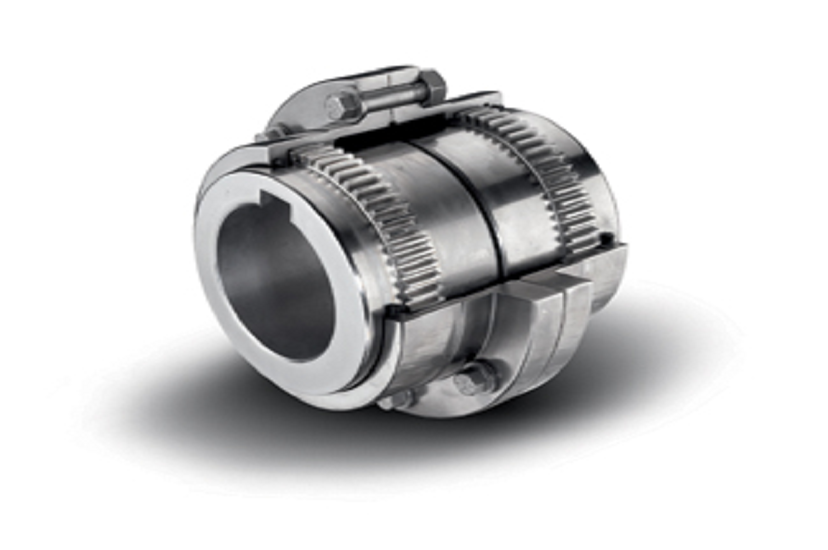

KTL Drum gear coupling
Large flexible sleeve for high torque applications with space constraints
28 specifications
Thirteen models for general use, high speed applications and high torque applications
Aperture capacity up to 43 inches (1067 mm)
Maximum torque up to 72,450,000 inches-pounds (8,185,763 torsional meters)

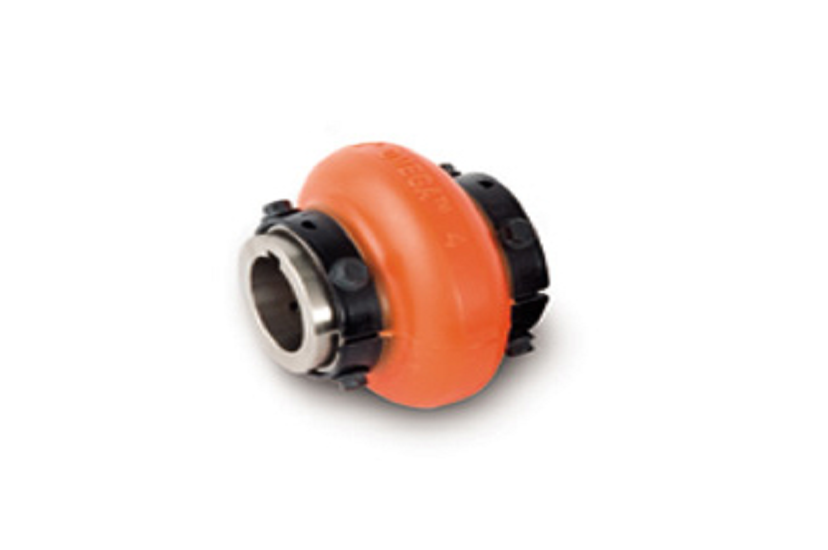

KTL Elastomer Coupling
The design of two-and-a-half elastic elements can improve the efficiency of installation and replacement
Installation passes can accommodate various shaft clearances: from 0.25 inches (6mm) to 11.81 inches (300mm)
Low maintenance costs without lubrication
Fifteen Omega specifications and twelve Viva specifications
Aperture capacity up to 11 inches (279 mm)
Maximum torque up to 340,200 inches-pounds (38,440 twist meters)
Speed up to 7,500 rpm
KTL Diaphragm coupling
The diaphragm and central segment can be inspected and replaced quickly.
Zero Side Gap, Low Recovery Force, Insulation Design.
More than 25 specifications
Aperture capacity up to 15.5 inches (394 mm)
Maximum torque up to 3,390.000 inches-pounds (383,019 torsional meters)
up to 36,000 rpm
Meet API 671 or API 610 specifications

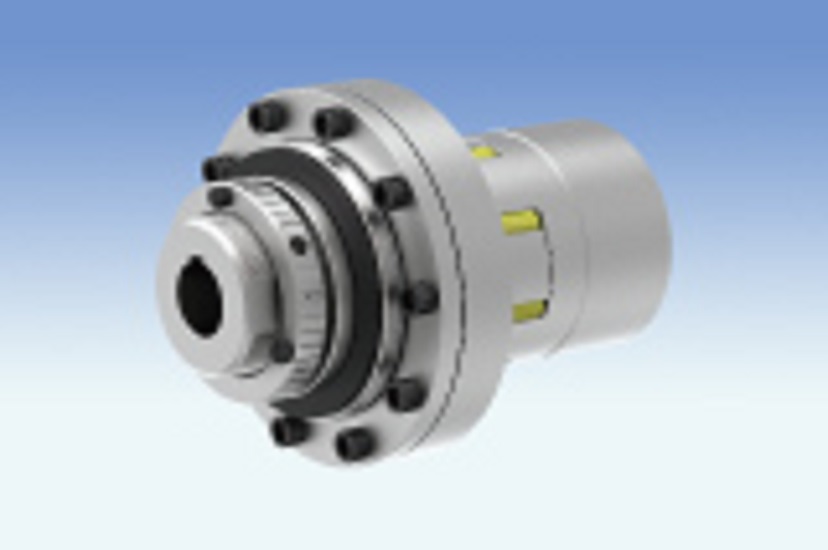

KTL Torque Limiter
Equipment protection
Precise Torque Limitation
Immediate disengagement
Quick reset
Shorten downtime
Extend the life of system components
Maximum torque up to 6,600,000 in-lbs (inch-pound)
Speed up to 3,600 rpm (per minute)
